The RSU120XB is a wireless remote emergency stop controller designed for show and entertainment laser systems. It integrates a standard emergency stop pushbutton, interlock key-switch, and a handheld remote control to remotely open/close the interlock and stop the laser as needed. Show operators or spotters can carry the remote control and activate the emergency stop remotely. The hardwired stop button on the receiver controller remains functional at all times and can always be used by an attendant located nearby to stop the laser. Additional buttons on the remote control can be used to trigger connected accessories, such as a fog machine. This device is fully compatible with common projectors from brands like Kvant and Unity that use the 3-pin XLR interlock connector. It can also be connected to the user interlock plug on Kvant and Unity e-stop modules.

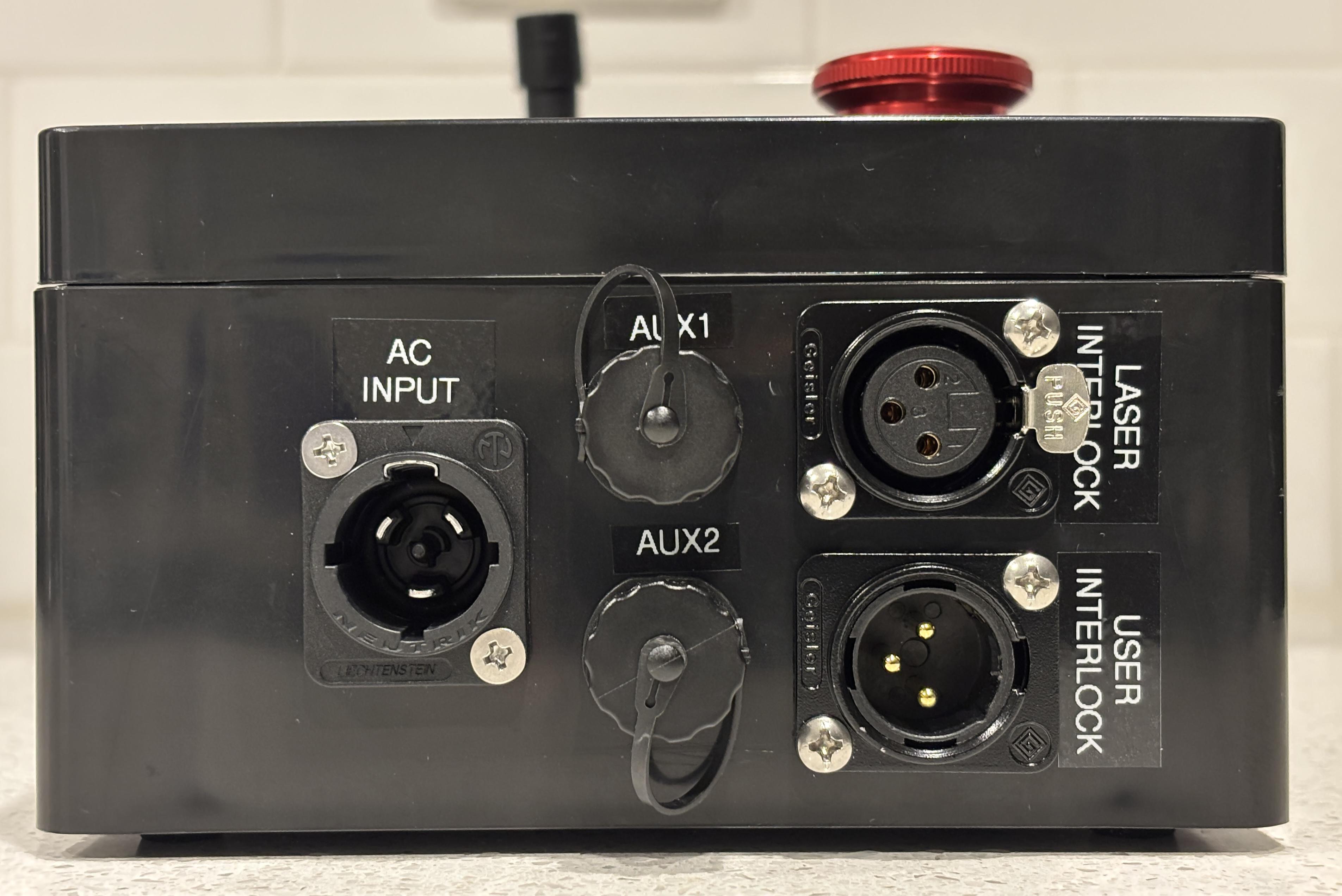

On the receiver enclosure are the following connections:
- AC INPUT - Neutrik PowerCON TRUE1 (100-240 VAC)
- AUX1 & AUX2 - Auxiliary relay outputs for accessories such as fog machines
- LASER INTERLOCK - XLR for REMOTE interlock input on Kvant/Unity lasers (can also be connected to USER INTERLOCK port on e-stop box)
- USER INTERLOCK - For connecting an additional interlock, not for daisy-chaining other e-stop boxes from Kvant, Unity, etc.
This device is currently under evaluation and testing by us as well as others. If it ends up being a viable product we hope to bring it to market at some point!
